YX-9
Yuxiang

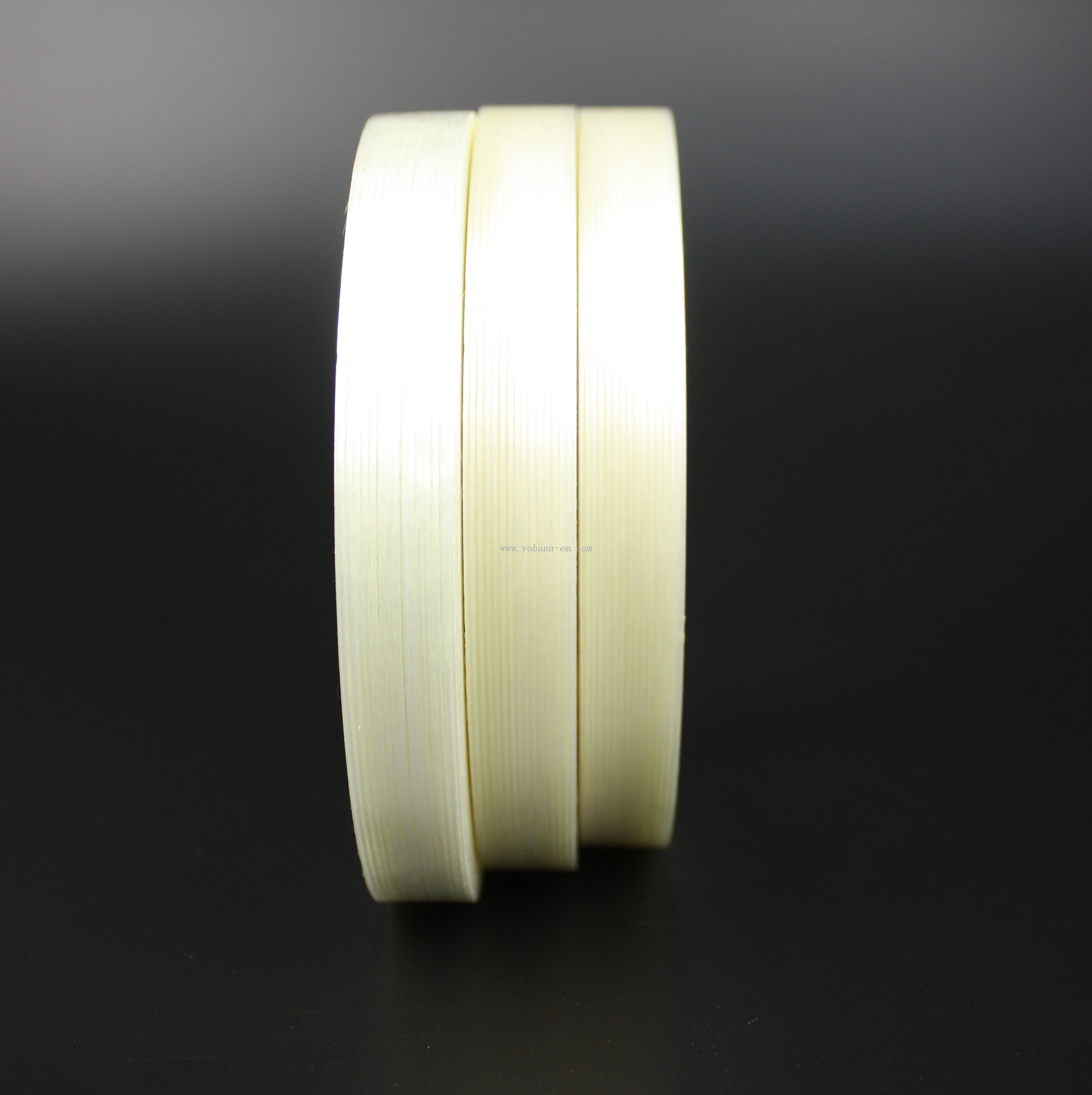

▲Construction
Backing: Polyester film reinforced with glass fiber
Adhesive: Acrylic, thermosetting
▲Application
1.Ultra-high tensile strength tape with outstanding resistance to solvents and mineral oils for a variety of heavy duty applications
2.Engineered as a construction tape for easy winding of oil-filled distribution and power transformers
3.Binding motor and transformer coils and coil covering applications; lead and saddle tie down
4.Also used for concrete stenciling
▲Features & Benefits
1.Exceptional resistance to transformer oil and other chemicals, solvents and ageing when fully thermoset
2.High tensile and tear strength
3.High abrasion, puncture and edge-tear resistance
4.Conformable backing with aggressive adhesive
5.High dielectric strength and insulation resistance
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
▲Construction
Backing: Polyester film reinforced with glass fiber
Adhesive: Acrylic, thermosetting
▲Application
1.Ultra-high tensile strength tape with outstanding resistance to solvents and mineral oils for a variety of heavy duty applications
2.Engineered as a construction tape for easy winding of oil-filled distribution and power transformers
3.Binding motor and transformer coils and coil covering applications; lead and saddle tie down
4.Also used for concrete stenciling
▲Features & Benefits
1.Exceptional resistance to transformer oil and other chemicals, solvents and ageing when fully thermoset
2.High tensile and tear strength
3.High abrasion, puncture and edge-tear resistance
4.Conformable backing with aggressive adhesive
5.High dielectric strength and insulation resistance
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
