YX-5
Yuxiang

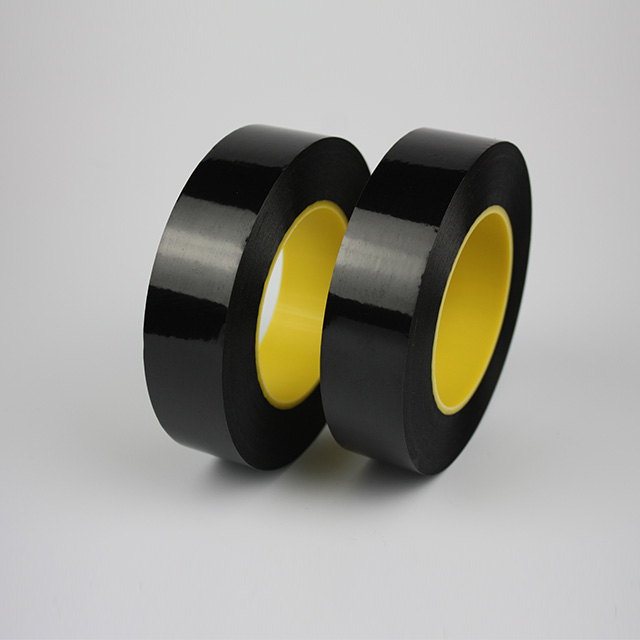

Yuxiang® YX-5 electrical tape is based on Mylar A and high-performance electrician non-woven fabric and coated with modification of high temperature resistant acrylic adhesive.
Yuxiang® YX-5 electrical tape has an excellent adhesion and mechanical properties, heat resistant level F (UL File #: E474901). The main application of bus bar insulation coating and fixed, at the same time, applied to the requirements for heat resistance is Scott motor and transformer coil end insulation and fixed, and so on.
Has good solvent resistance and flame retardant properties.
Total Thickness 0.11~0.25±10%mm
Backing Material Mylar and high performance electrician non-woven fabric
Adhesive Acrylic
Temperature rating Class F/ 155℃
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |

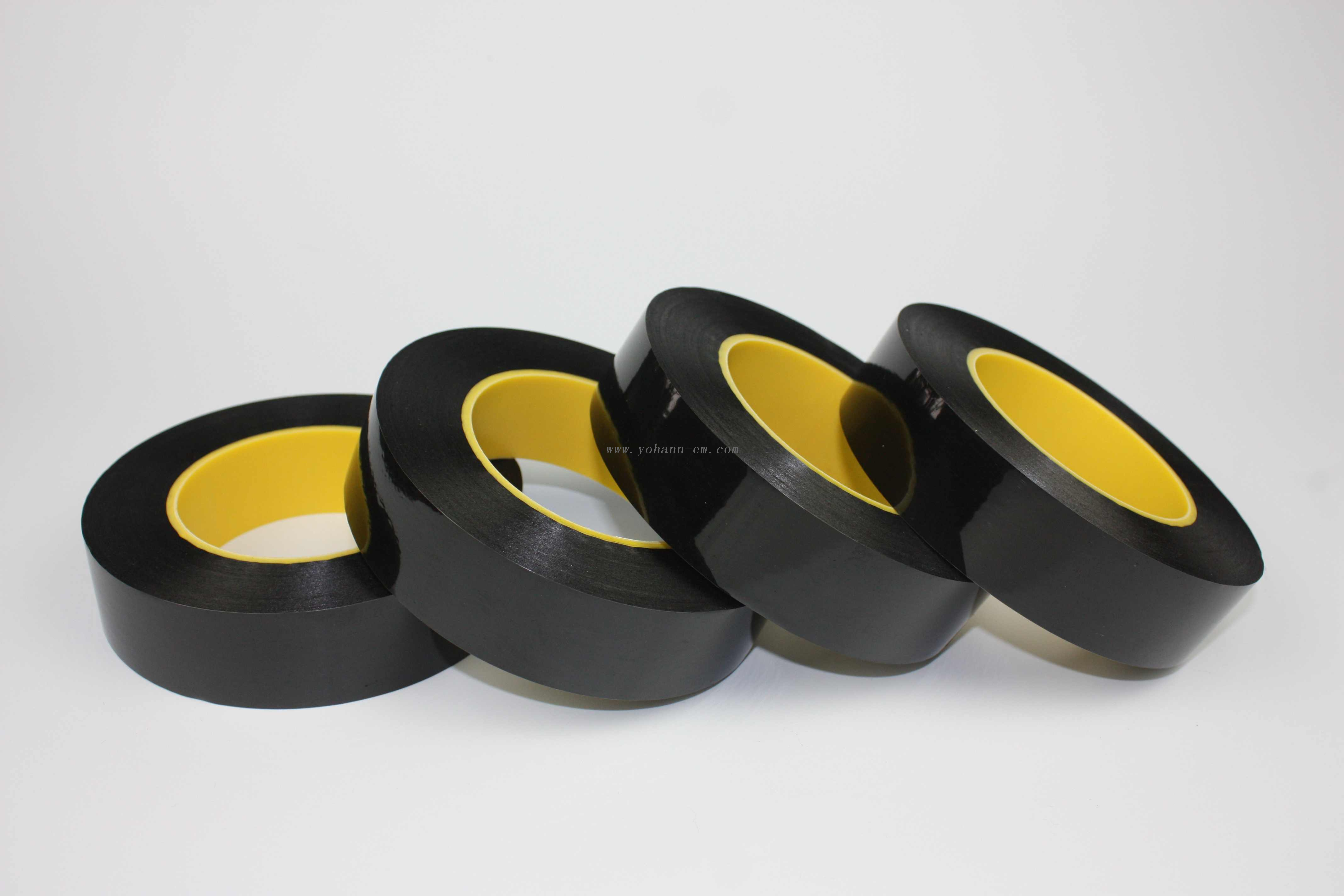

YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
Yuxiang® YX-5 electrical tape is based on Mylar A and high-performance electrician non-woven fabric and coated with modification of high temperature resistant acrylic adhesive.
Yuxiang® YX-5 electrical tape has an excellent adhesion and mechanical properties, heat resistant level F (UL File #: E474901). The main application of bus bar insulation coating and fixed, at the same time, applied to the requirements for heat resistance is Scott motor and transformer coil end insulation and fixed, and so on.
Has good solvent resistance and flame retardant properties.
Total Thickness 0.11~0.25±10%mm
Backing Material Mylar and high performance electrician non-woven fabric
Adhesive Acrylic
Temperature rating Class F/ 155℃
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
