YX-10
Yuxiang
▲General Description

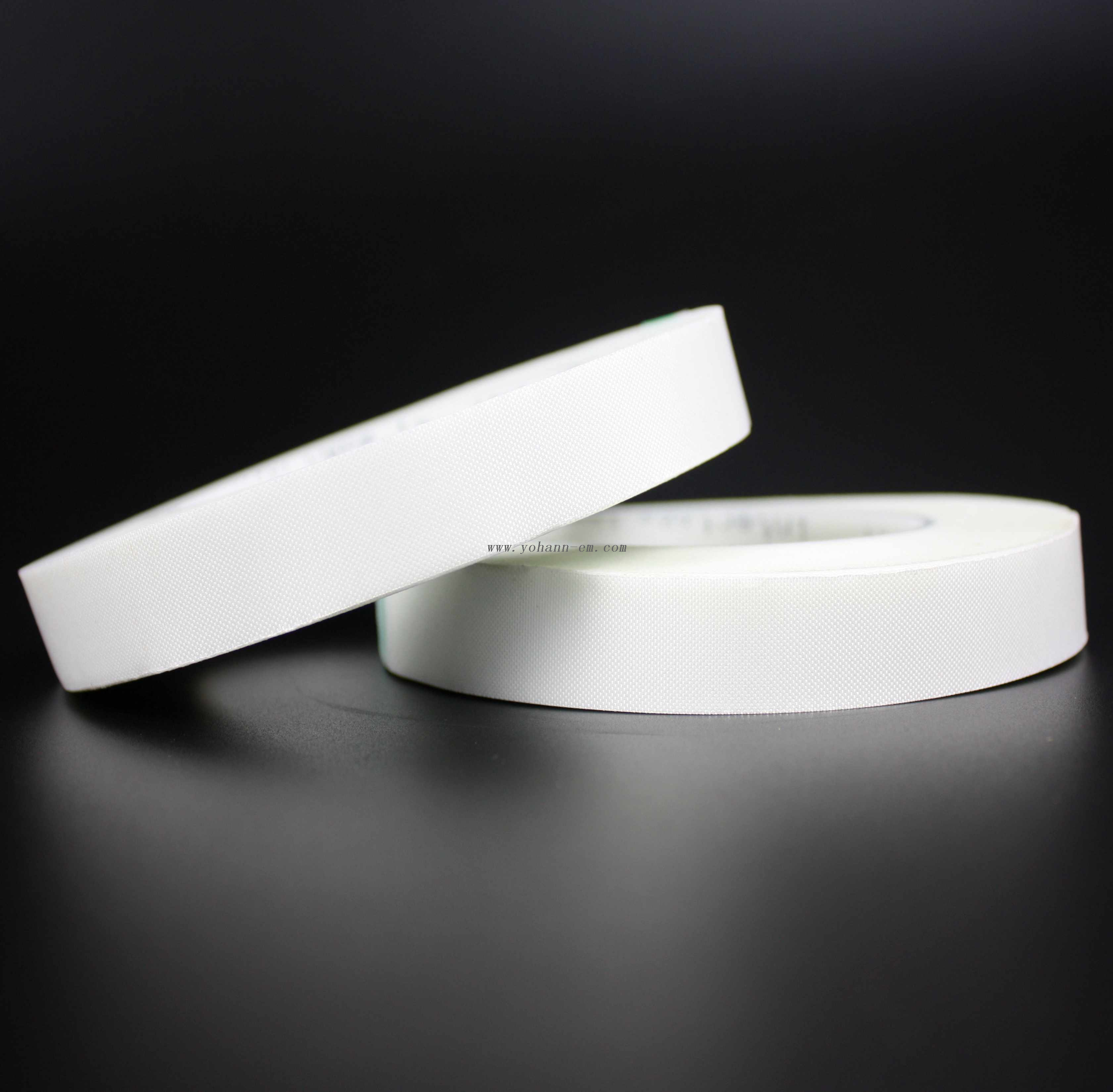

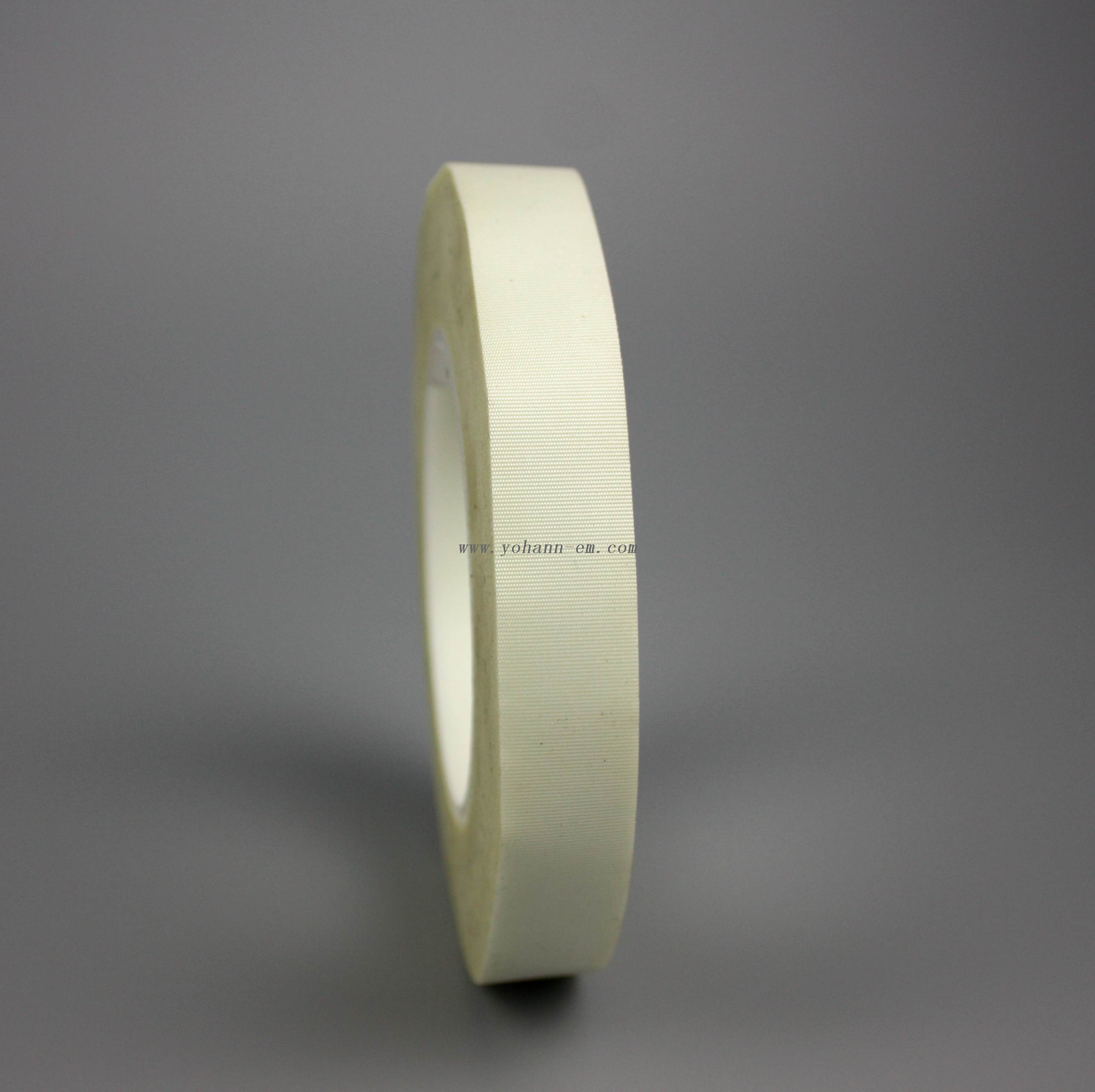

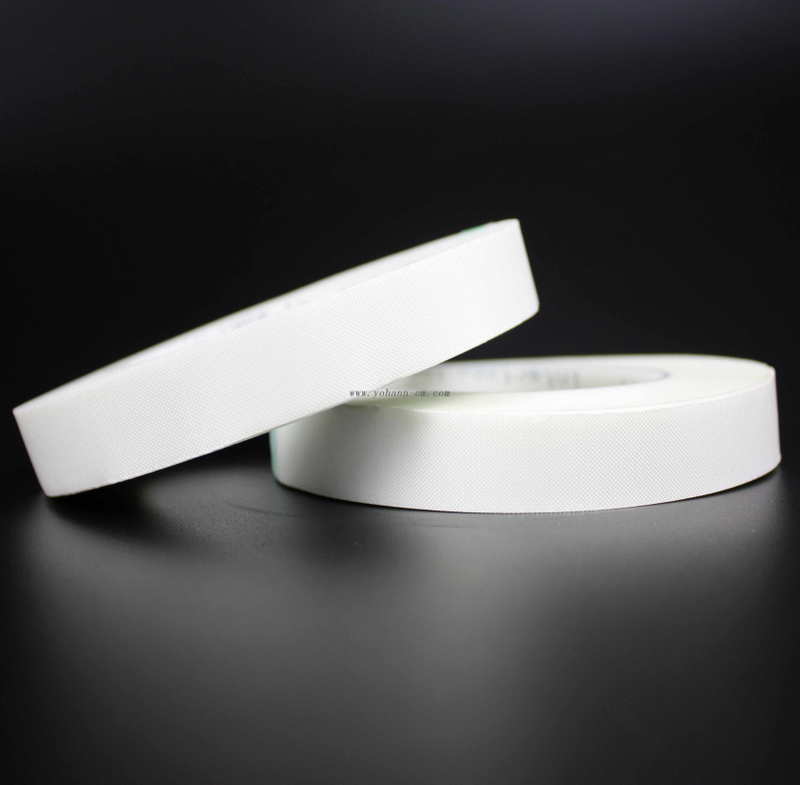

Yuxiang® YX-10 electrical tape is based on high quality white glass cloth and coated with modification of high temperature resistant acrylic/silicon adhesive.
▲Typical Applications
Yuxiang® YX-10 electrical tape has an excellent adhesion and mechanical properties, heat resistant level F/H Class. Be mainly applied to the capacitor, reactor, transformer and motor coil winding and fixed, and so on.
▲ Typical Physical Properties
Has good solvent resistance and flame retardant properties.
Item | Normal 1 | Normal 2 |
Backing | glass cloth | |
Backing Thickness (mm) | 0.13 | |
Total Thickness (mm) | 0.18±10% | |
Adhesive | Acrylic | Silicon |
Temperature Class | 155℃/180℃ | 200℃ |
Test Method: ASTM D 1000.
▲Colour: White
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
