YX-8
Yuxiang

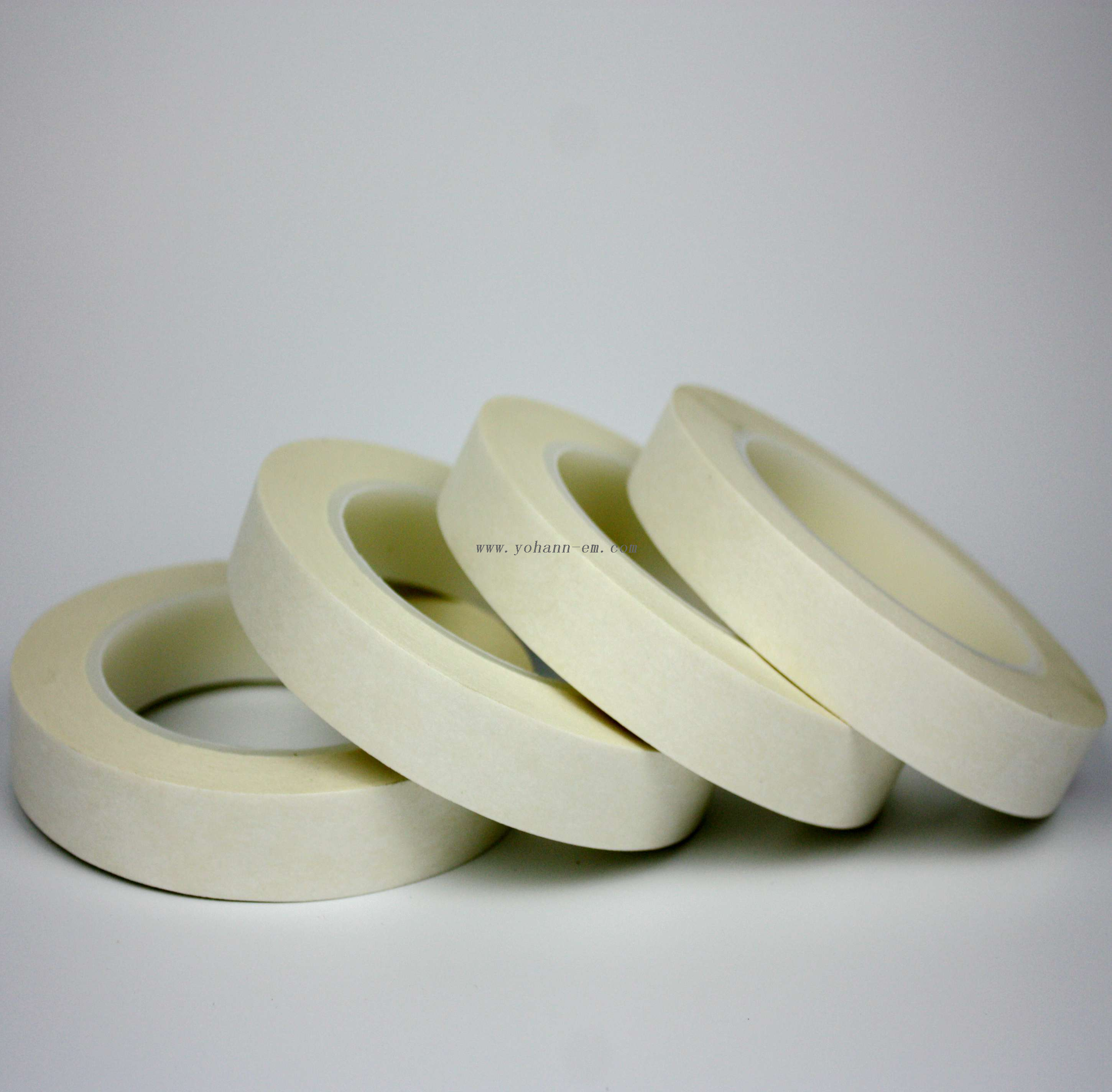

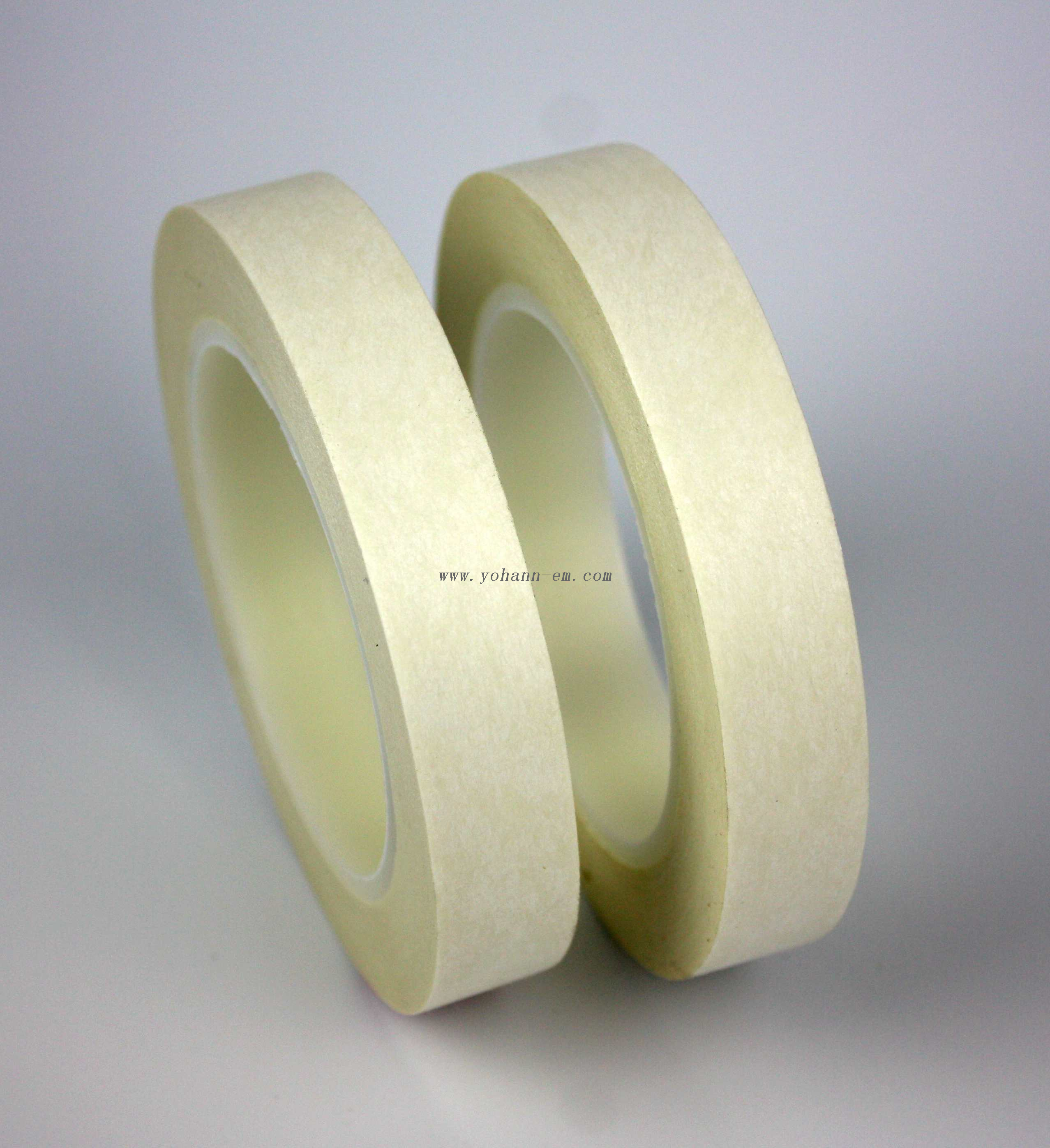

Be composed of DuPont Nomex® paper single-sided coating a layer of high temperature resistant acrylic pressure sensitive adhesive made from a kind of high temperature resistant insulating tape.
Be mainly applied to the capacitor, reactor, transformer and motor coil winding and fixed.
Has good solvent resistance and flame retardant properties.
Backing Nomex® paper
Backing Thickness (mm) 0.08 0.05
Total Thickness (mm) 0.13±10% 0.08±10%
Adhesive Acrylic
Temperature Class Class H/180℃
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
Be composed of DuPont Nomex® paper single-sided coating a layer of high temperature resistant acrylic pressure sensitive adhesive made from a kind of high temperature resistant insulating tape.
Be mainly applied to the capacitor, reactor, transformer and motor coil winding and fixed.
Has good solvent resistance and flame retardant properties.
Backing Nomex® paper
Backing Thickness (mm) 0.08 0.05
Total Thickness (mm) 0.13±10% 0.08±10%
Adhesive Acrylic
Temperature Class Class H/180℃
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
