YX-2
Yuxiang

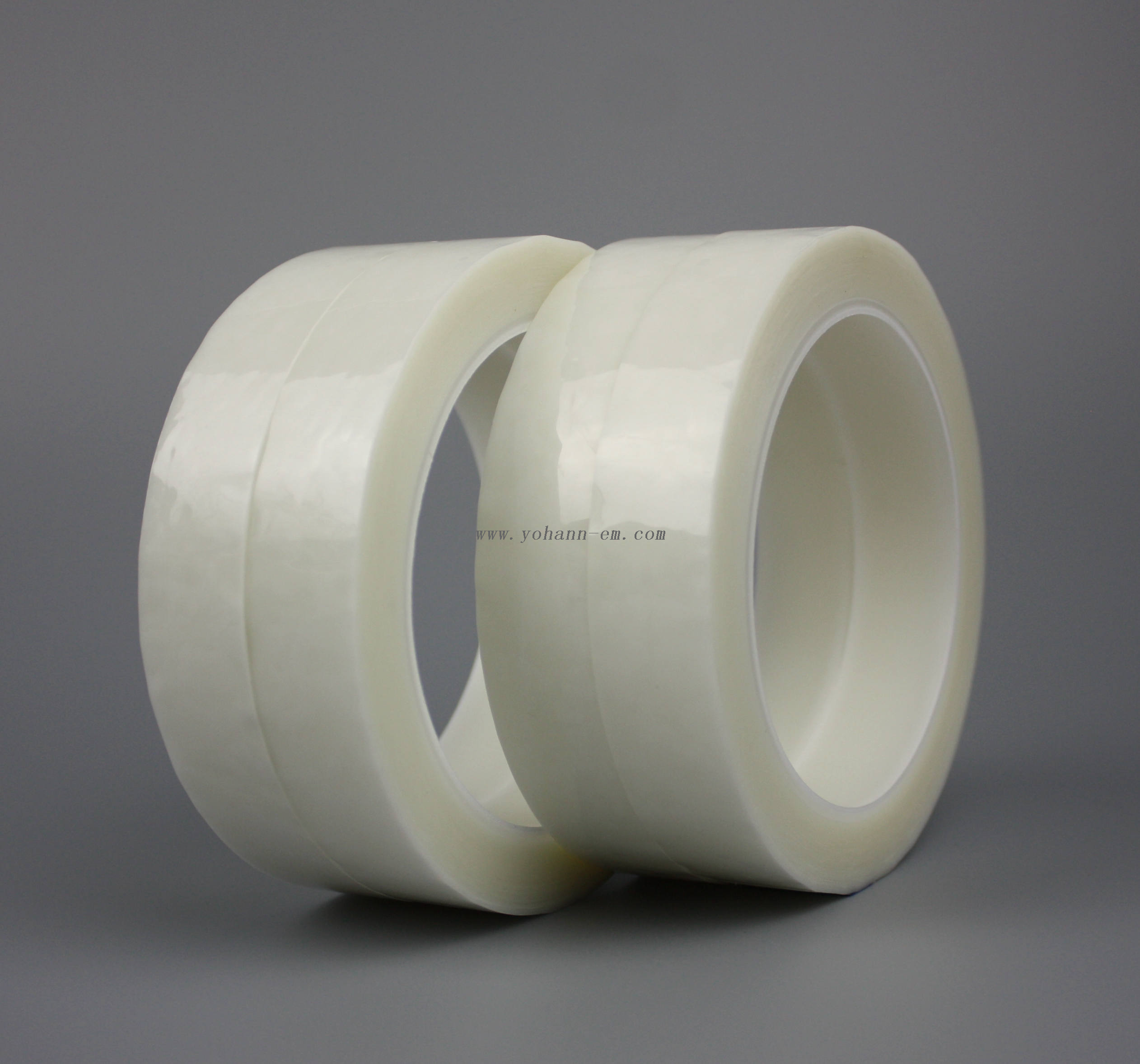

Yuxiang® YX-2 electrical tape is based on high quality polyester and coated with modification of high temperature resistant acrylic/silicon adhesive.
Yuxiang® YX-2 electrical tape has an excellent adhesion and electrical insulating properties, heat resistant level B Class(130℃). Be mainly applied to the capacitor, reactor, transformer, electric transformer and motor coil winding and fixed, and so on.

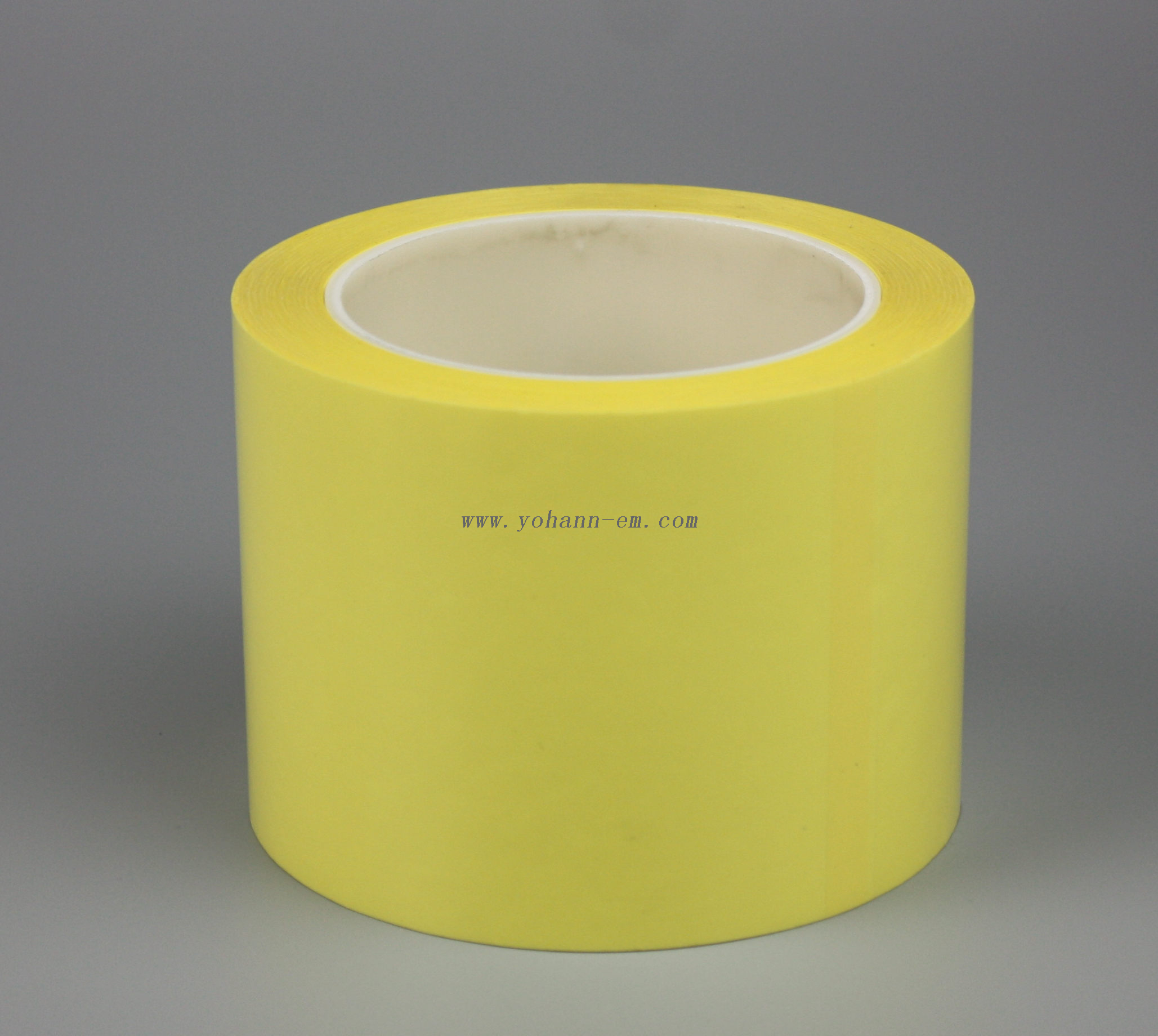

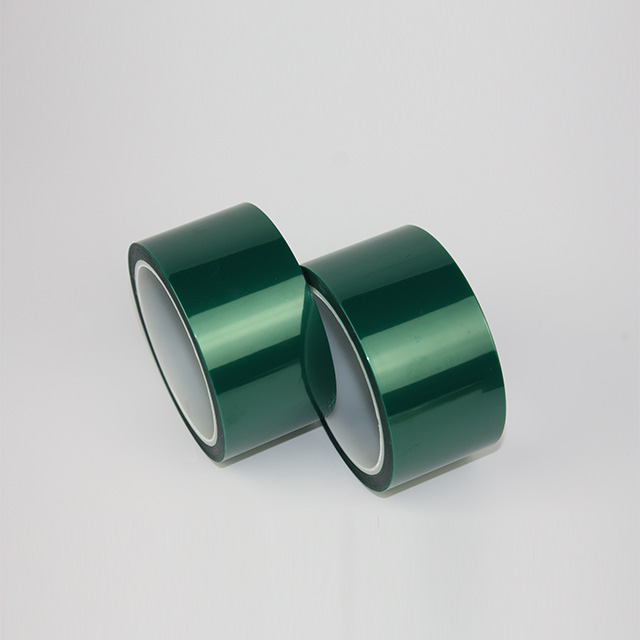

Colour: White, Yellow, Red, Blue, Green, Clear
Backing material | —— | Polyester film | |
Backing thickness | mm | 0.025±0.003 | 0.05±0.005 |
Adhesive | —— | Acrylic/Silicon | |
Total thickness | mm | 0.045/0.055±0.01 | 0.075/0.085±0.01 |
Heat resistance temperature | —— | 130℃/200℃ | |
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |

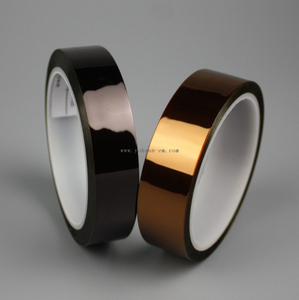

YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |

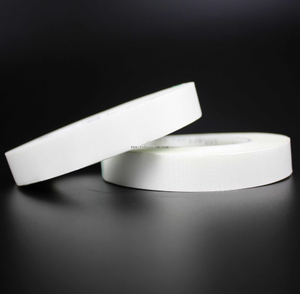

YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
Yuxiang® YX-2 electrical tape is based on high quality polyester and coated with modification of high temperature resistant acrylic/silicon adhesive.
Yuxiang® YX-2 electrical tape has an excellent adhesion and electrical insulating properties, heat resistant level B Class(130℃). Be mainly applied to the capacitor, reactor, transformer, electric transformer and motor coil winding and fixed, and so on.
Colour: White, Yellow, Red, Blue, Green, Clear
Backing material | —— | Polyester film | |
Backing thickness | mm | 0.025±0.003 | 0.05±0.005 |
Adhesive | —— | Acrylic/Silicon | |
Total thickness | mm | 0.045/0.055±0.01 | 0.075/0.085±0.01 |
Heat resistance temperature | —— | 130℃/200℃ | |
PRODUCTS | SUBSTRATE & ADHESIVE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
YX-2# (PET Tape) | PET film, Acrylic/Silicon adhesive | B | 0.045-0.13 | 5~1000 |
YX-5# (PET & Non-woven fabric Tape) | PET film, Non-woven fabric, Acrylic adhesive | F | 0.11-0.25 | 5-1000 |
YX-7# (PI Tape) | PI film, Acrylic/Silicon adhesive | H, C | 0.04-0.18 | 5~520 |
YX-8# (Nomex® paper Tape) | Nomex® paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5-914 |
YX-9# (PET & Fiberglass Tape) | PET film, Fiberglass, Acrylic adhesive | F | 0.18 | 5-550 |
YX-10# (Glass cloth Tape) | Glass cloth, Acrylic/Silicon adhesive | F, H | 0.18 | 5~1080 |
YX-13# (Aluminum foil Tape) | Aluminum foil, Acrylic adhesive | - | 0.05-0.13 | 5-500 |
YX-14# (Aramid paper Tape) | Aramid paper, Acrylic/Silicon adhesive | H, C | 0.05-0.23 | 5~914 |
YX-20# (Silicon-glass Cloth Tape) | Silicon-glass Cloth, Acrylic/Silicon adhesive | C | 0.5 | 5-500 |
YX-22#（ NMN Tape ） | NMN, Acrylic adhesive | H | 0.3 | 5~914 |
