YMY/AMA
Yuxiang/Yohann
YMY/AMA
Good Equivalent of NMN
Class H(180ºC)
Good mechanical properties
Aramid Paper made-in-China
General description

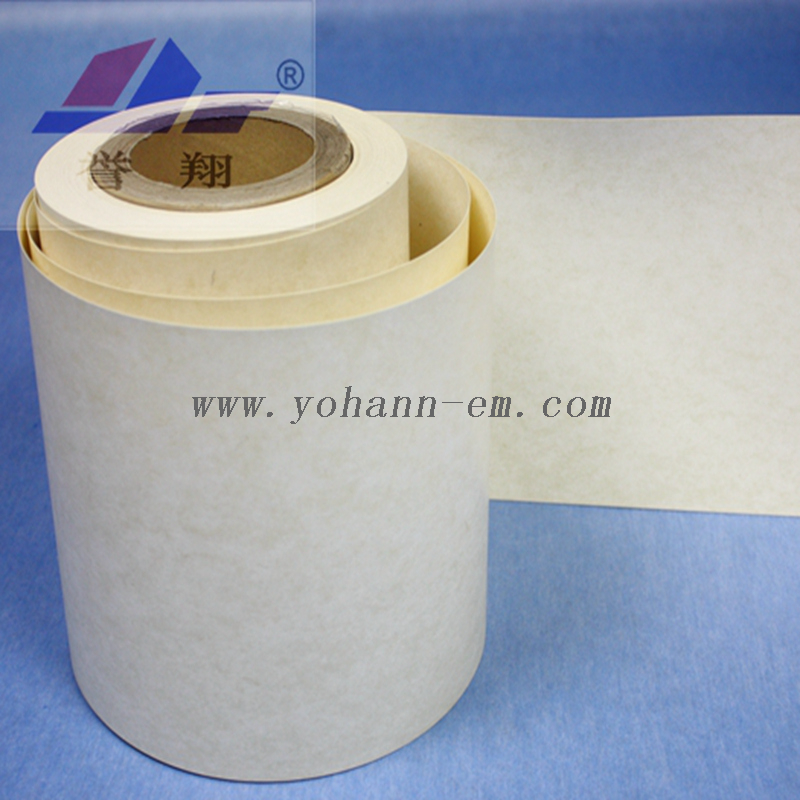

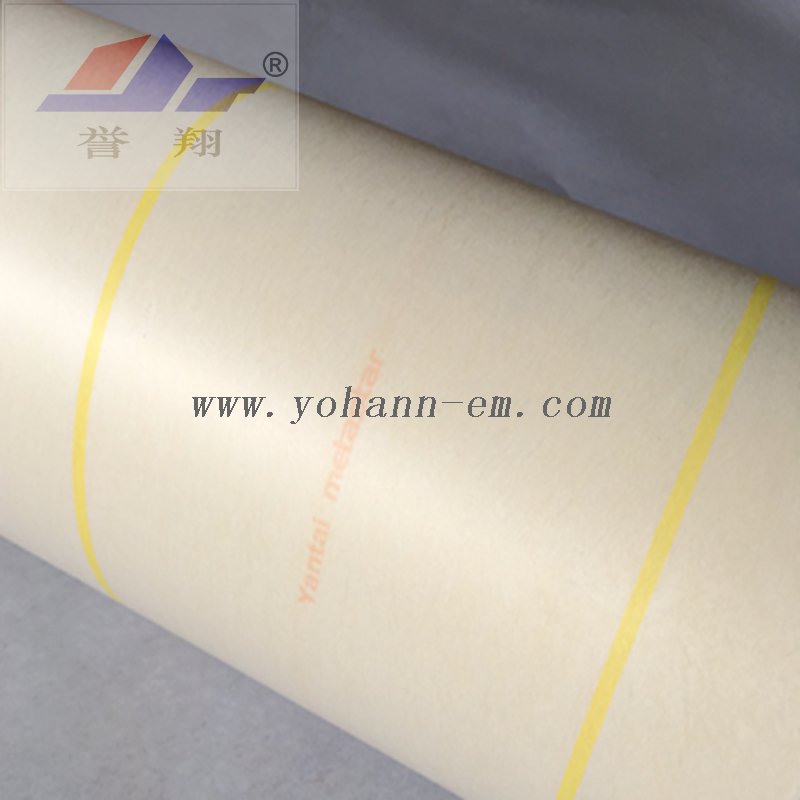

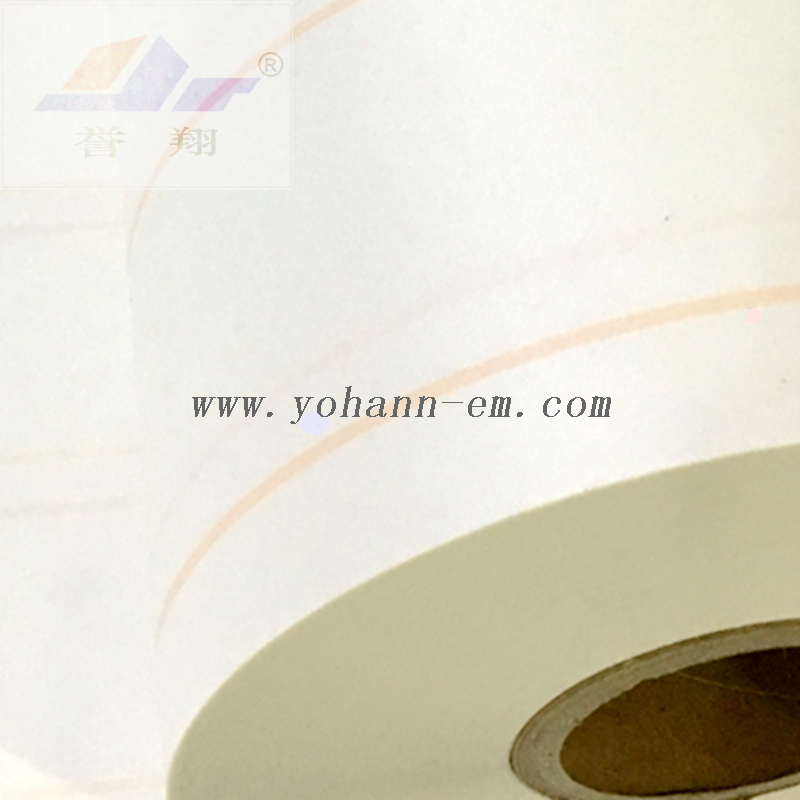

Yuxiang® YMY/AMA is a 3-ply flexible laminate made of Aramid paper - polyester film - Aramid paper, bonded with a synthetic adhesive.
Application
Yuxiang® YMY/AMA is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 180ºC. It is used in low or medium voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.
YMY/AMA | Aramid paper + PET film + Aramid paper | H | 0.07-1.4 | 3-2000 |
Yuxiang Flexible Laminates -
PRODUCTS | SUBSTRATE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
DMD | Dacron + PET film + Dacron | F | 0.08-0.5 | 3-1580 |
DM | Dacron + PET film | F | 0.06-0.5 | 3-1580 |
DMDMD | 5 layers of Dacron + PET film Composites | F | 0.3-3.0 | 10-1580 |
NMN | Nomex® paper + PET film + Nomex® paper | H, C | 0.1-1.4 | 3-1580 |
NM | Nomex® paper + PET film | F, H | 0.07-1.0 | 3-1580 |
NMNMN | 5 layers of Nomex® paper , PET film Composites | H | 0.9-1.4 | 10-1580 |
NHN | Nomex® paper + PI film + Nomex® paper | C | 0.1-0.5 | 3-904 |
NH | Nomex® paper + PI film | H | 0.07-0.94 | 3-904 |
YMY/AMA | Aramid paper + PET film + Aramid paper | H | 0.07-1.4 | 3-2000 |
YHY/AHA | Aramid paper + PI film + Aramid paper | C | 0.07-0.5 | 3-1000 |
SHS | Dacron + PI film + Dacron | H | 0.1-0.5 | 3-1030 |
SH | Dacron + PI film | H | 0.07-0.45 | 3-1030 |
YX130 | 3 layers of PET film Composites | B | 0.5-1.1 | 10-1580 |
TFT | Tufquin® paper + PET film + Tufquin® paper | H | 0.13-0.6 | 3-900 |
TF | Tufquin® paper + PET film | H | 0.08-0.48 | 3-900 |
