NHN
Yuxiang/Yohann
NHN
UL File #： E472622
General description

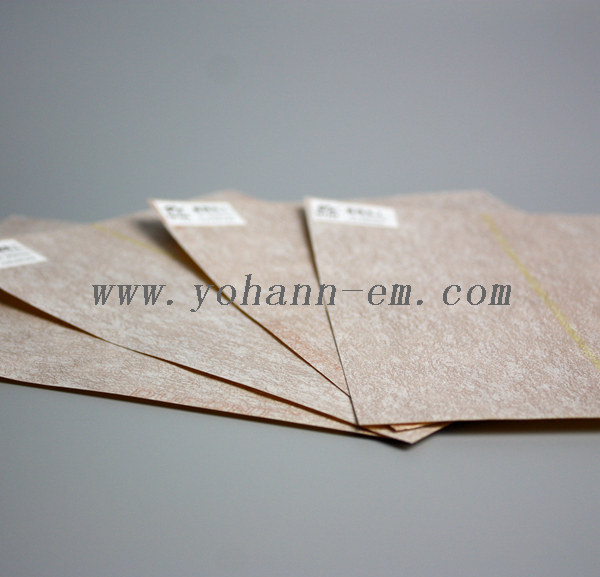

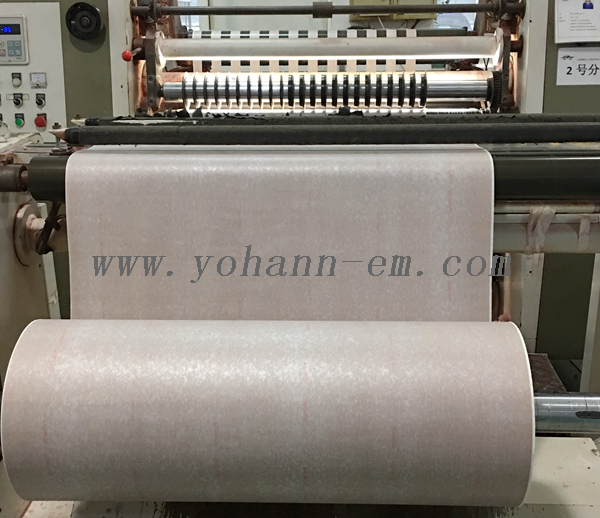

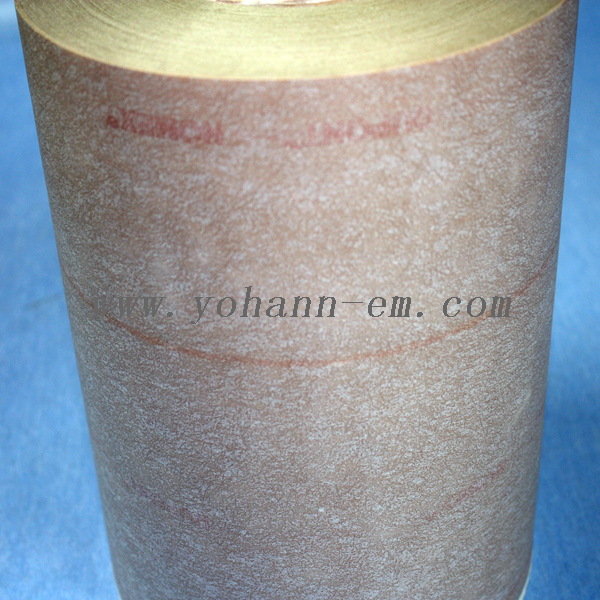

Yuxiang® NHN is made of 3-layer flexible laminates comprised of 2 layers of Dupont Nomex® paper and a layer of polyimide film with thermal resistance adhesive. The total thickness of the product depends on the thickness of Nomex® paper, also the properties. Meet the UL certification.
Typical Application

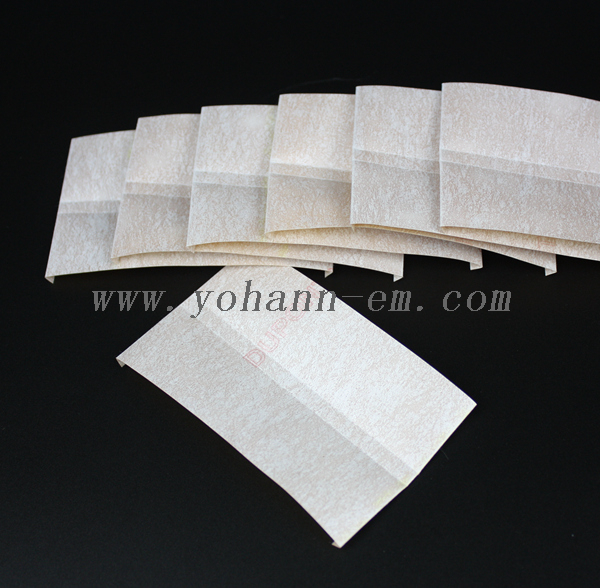

Yuxiang® NMN series is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 200℃ (C Class). It is used in high voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.
Typical Physical Properties
Class C (200℃）
Good mechanical properties
NHN | Nomex® paper + PI film + Nomex® paper | C | 0.1-0.5 | 3-904 |
NH | Nomex® paper + PI film | H | 0.07-0.94 | 3-904 |
Yuxiang Flexible Laminates -
PRODUCTS | SUBSTRATE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
DMD | Dacron + PET film + Dacron | F | 0.08-0.5 | 3-1580 |
DM | Dacron + PET film | F | 0.06-0.5 | 3-1580 |
DMDMD | 5 layers of Dacron + PET film Composites | F | 0.3-3.0 | 10-1580 |
NMN | Nomex® paper + PET film + Nomex® paper | H, C | 0.1-1.4 | 3-1580 |
NM | Nomex® paper + PET film | F, H | 0.07-1.0 | 3-1580 |
NMNMN | 5 layers of Nomex® paper , PET film Composites | H | 0.9-1.4 | 10-1580 |
NHN | Nomex® paper + PI film + Nomex® paper | C | 0.1-0.5 | 3-904 |
NH | Nomex® paper + PI film | H | 0.07-0.94 | 3-904 |
YMY/AMA | Aramid paper + PET film + Aramid paper | H | 0.07-1.4 | 3-2000 |
YHY/AHA | Aramid paper + PI film + Aramid paper | C | 0.07-0.5 | 3-1000 |
SHS | Dacron + PI film + Dacron | H | 0.1-0.5 | 3-1030 |
SH | Dacron + PI film | H | 0.07-0.45 | 3-1030 |
YX130 | 3 layers of PET film Composites | B | 0.5-1.1 | 10-1580 |
TFT | Tufquin® paper + PET film + Tufquin® paper | H | 0.13-0.6 | 3-900 |
TF | Tufquin® paper + PET film | H | 0.08-0.48 | 3-900 |
