Flexible laminates insulation paper DMD (UL Certification)

Availability:

Quantity:



Inquire Add to Basket

Model:
DMD
Brand:
Yuxiang/Yohann

Product Description

DMD

General description

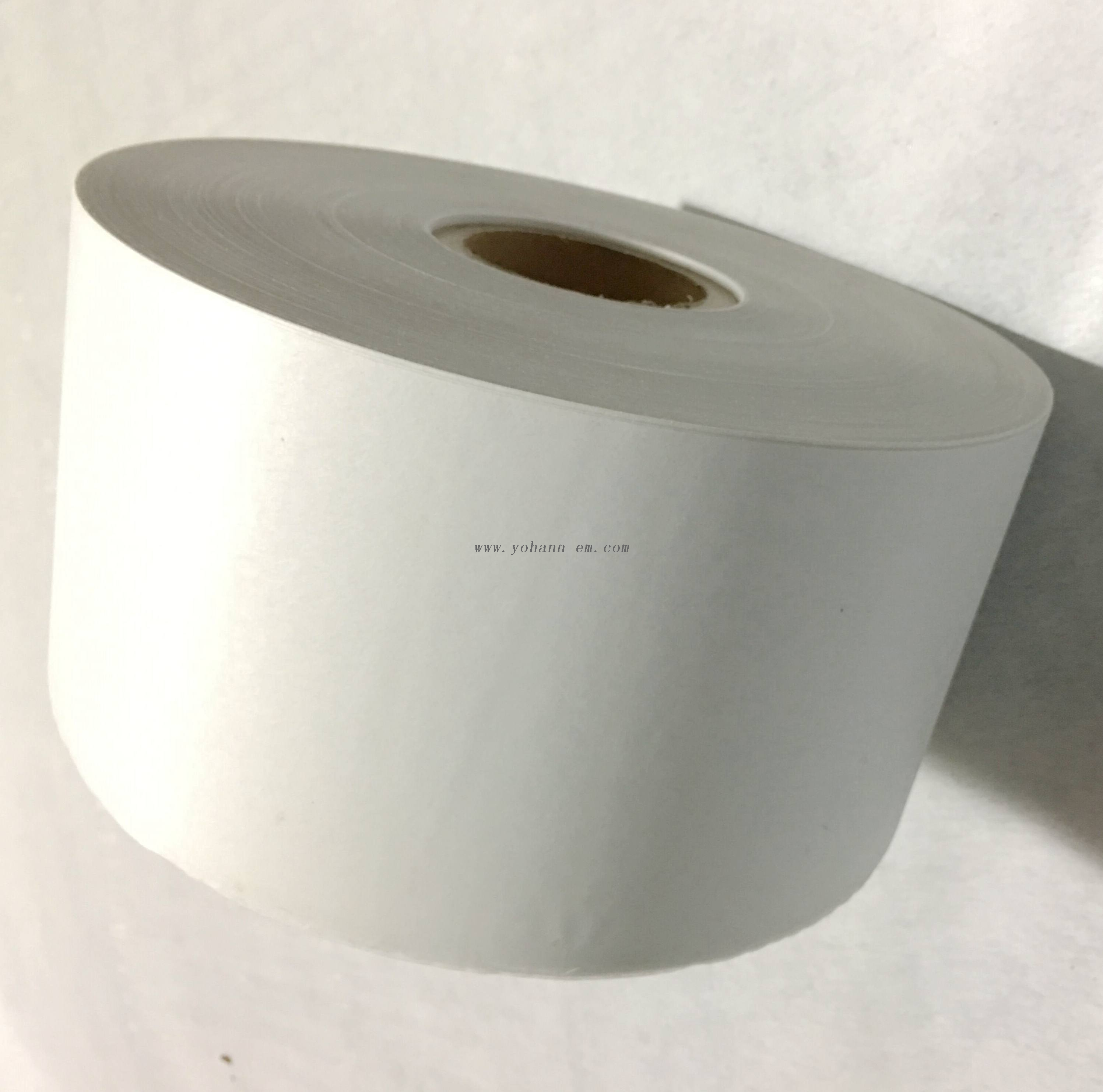

Yuxiang^® DMD is made of 3-layer flexible laminates comprised of 2 layers of non-woven fabric and a layer of polyester film with thermal resistance adhesive.

Typical Application
Yuxiang® DMD series is suitable for suitable for insulation in electrical motors and transformers with a maximum operating temperature of 155ºC. It is used in low or medium voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.

Typical Physical Properties

Class F(155ºC)
Good mechanical properties

Absorbs well impregnation varnishes and resins

DMD	Dacron + PET film + Dacron	F	0.08-0.5	3-1580
DM	Dacron + PET film	F	0.06-0.5	3-1580
DMDMD	5 layers of Dacron + PET film Composites	F	0.3-3.0	10-1580

Colour

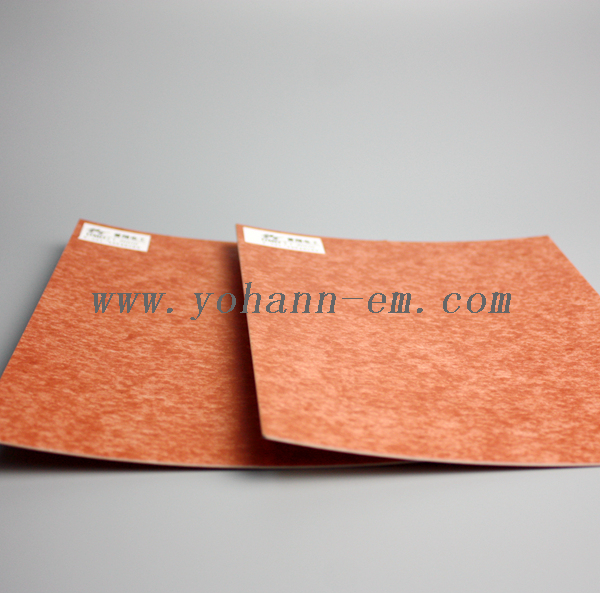

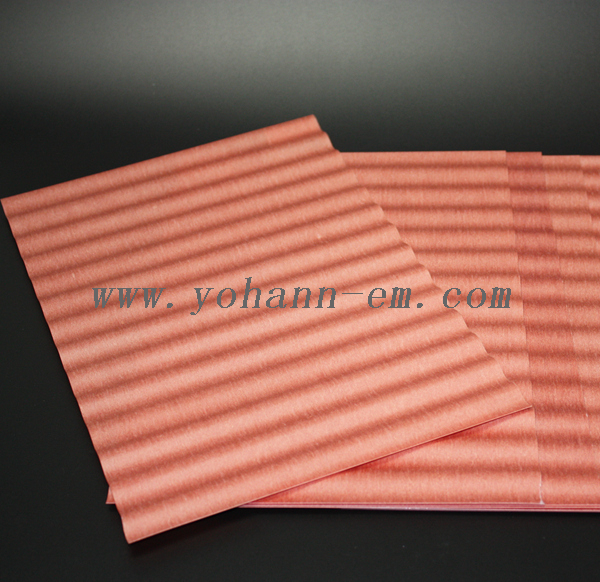

White, Blue, Green, Red, Coffee, Pink, other colour available depends on customer requirement.

Yuxiang Flexible Laminates -

PRODUCTS	SUBSTRATE	TEMPERATURE CLASS	THICKNESS（mm）	WIDTH（mm）
DMD	Dacron + PET film + Dacron	F	0.08-0.5	3-1580
DM	Dacron + PET film	F	0.06-0.5	3-1580
DMDMD	5 layers of Dacron + PET film Composites	F	0.3-3.0	10-1580
NMN	Nomex® paper + PET film + Nomex® paper	H, C	0.1-1.4	3-1580
NM	Nomex® paper + PET film	F, H	0.07-1.0	3-1580
NMNMN	5 layers of Nomex® paper , PET film Composites	H	0.9-1.4	10-1580
NHN	Nomex® paper + PI film + Nomex® paper	C	0.1-0.5	3-904
NH	Nomex® paper + PI film	H	0.07-0.94	3-904
YMY/AMA	Aramid paper + PET film + Aramid paper	H	0.07-1.4	3-2000
YHY/AHA	Aramid paper + PI film + Aramid paper	C	0.07-0.5	3-1000
SHS	Dacron + PI film + Dacron	H	0.1-0.5	3-1030
SH	Dacron + PI film	H	0.07-0.45	3-1030
YX130	3 layers of PET film Composites	B	0.5-1.1	10-1580
TFT	Tufquin® paper + PET film + Tufquin® paper	H	0.13-0.6	3-900
TF	Tufquin® paper + PET film	H	0.08-0.48	3-900
