Rofile

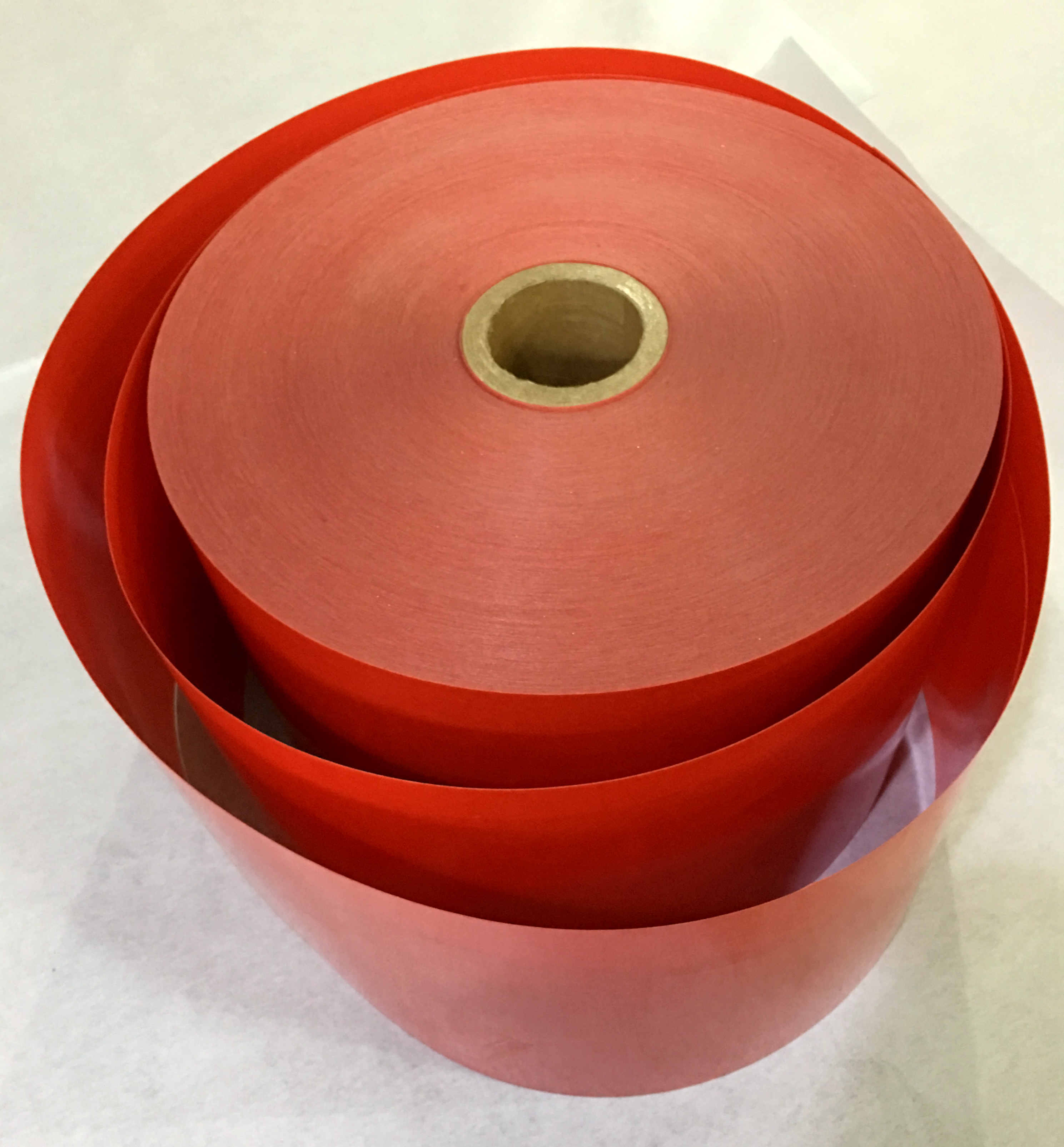

Yuxiang composite prepreg is the B-stage (semi cured) and C-stage (full cured) epoxy resin coating on both sides of the DMD, SHS. Substrate coated with the resin will strengthen all aspects of performance, such as temperature, electrical and mechanical properties. B-stage products will melt and recure in certain temperature, which can be firmly attached to the metal surface. C-stage products do not have the second curing.
Maximum width of finished products: 1600mm
Thickness range of composite products: 0.13~4.0mm
Products thermal class: F(155℃) ~H(180℃)class

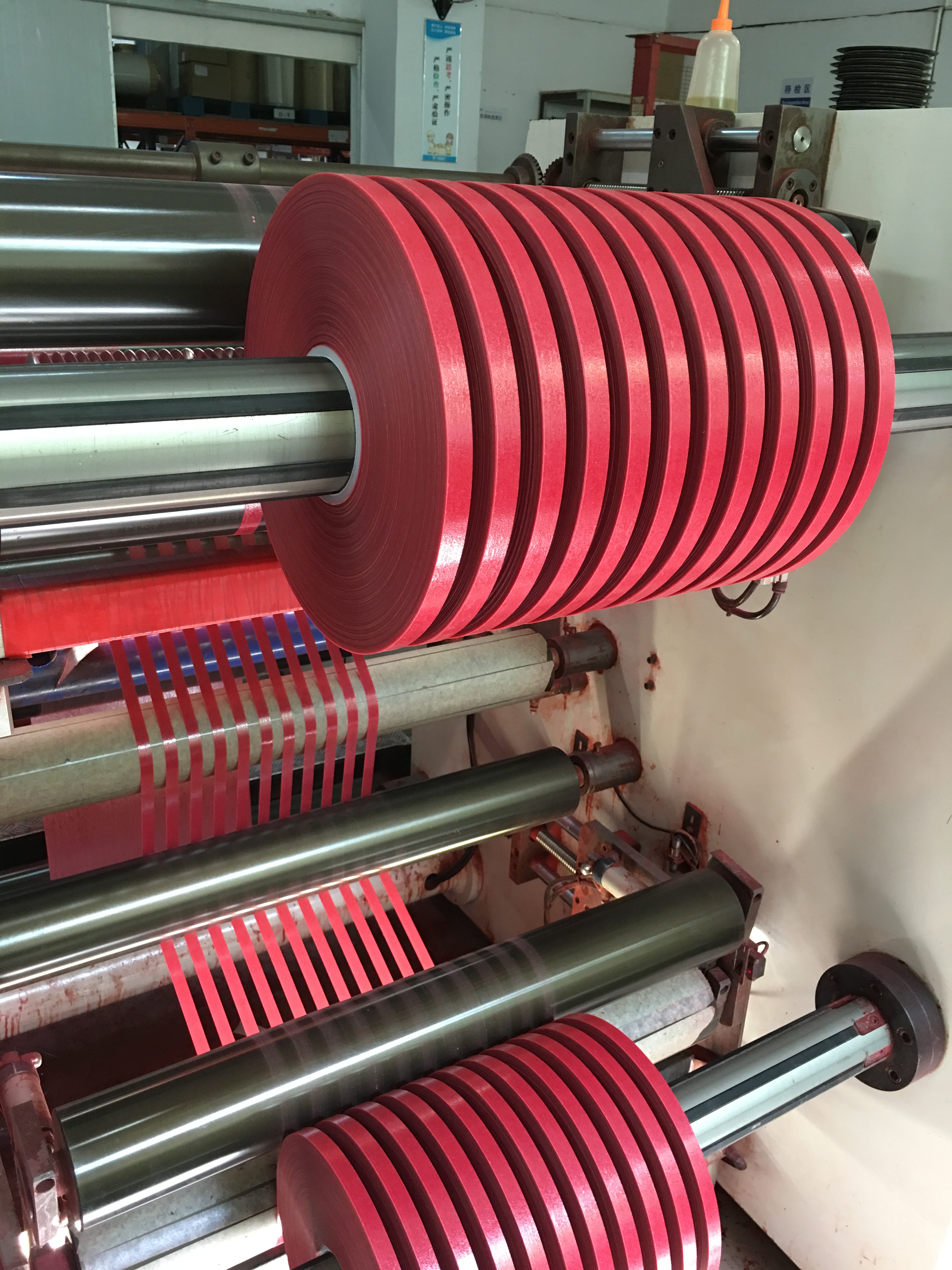

Minimum slitting width: 2.3mm；
Maximum slitting width: 1600mm；
Slitting thickness: 0.012~4mm.

Virtue
Good bonding performance, mechanical and electrical performance, reduce the noise of working transformer.
Main Application
Yuxiang composite prepregs are widely used in the main insulation of dry-type transformers,  motors, generators and other devices.


PRODUCTS	SUBSTRATE	TEMPERATURE CLASS	THICKNESS（mm）	WIDTH（mm）
DMD-P	DMD	F	0.13-4.0	3-1580
SHS-P	SHS	H	0.13-0.5	3-1030
DMD100 C-stage	DMD	F	0.13-4.0	3-1580
NMN-P	NMN	H	0.13-0.9	3-1580
YMY-P	YMY	H	0.13-0.9	3-1580
TFT-P	TFT	H	0.15-0.65	3-900
A18 B-stage	X-Fiber® X630	H	0.08-0.8	3-1000
Y18 B-stage	Metastar® YT510	H	0.08-0.8	3-1000
G18 B-stage	Glass Cloth	H	0.18	10-1240
N18 B-stage	Nomex® T410	H	0.08-0.8	3-914
P18 B-stage	Polyester film	B	0.08-0.4	3-1000
D18 B-stage	Dacron	B	0.08-0.25	3-1000
