Diamond Pattern Resin-Coated

Profile
Yuxiang diamond pattern resin-coated products are made by coating epoxy resin on the surface of flexible insulation materials such as Nomex® T410, aramid paper, PET, etc. to improve the performance.
Maximum width of finished products: 1100mm
Thickness range of composite products:0.05~1.0mm
Products thermal class: B(105℃) ~C(220℃) class
Minimum slitting width: 2.3mm;
Maximum slitting width: 1600mm;
Slitting thickness: 0.012~4mm.

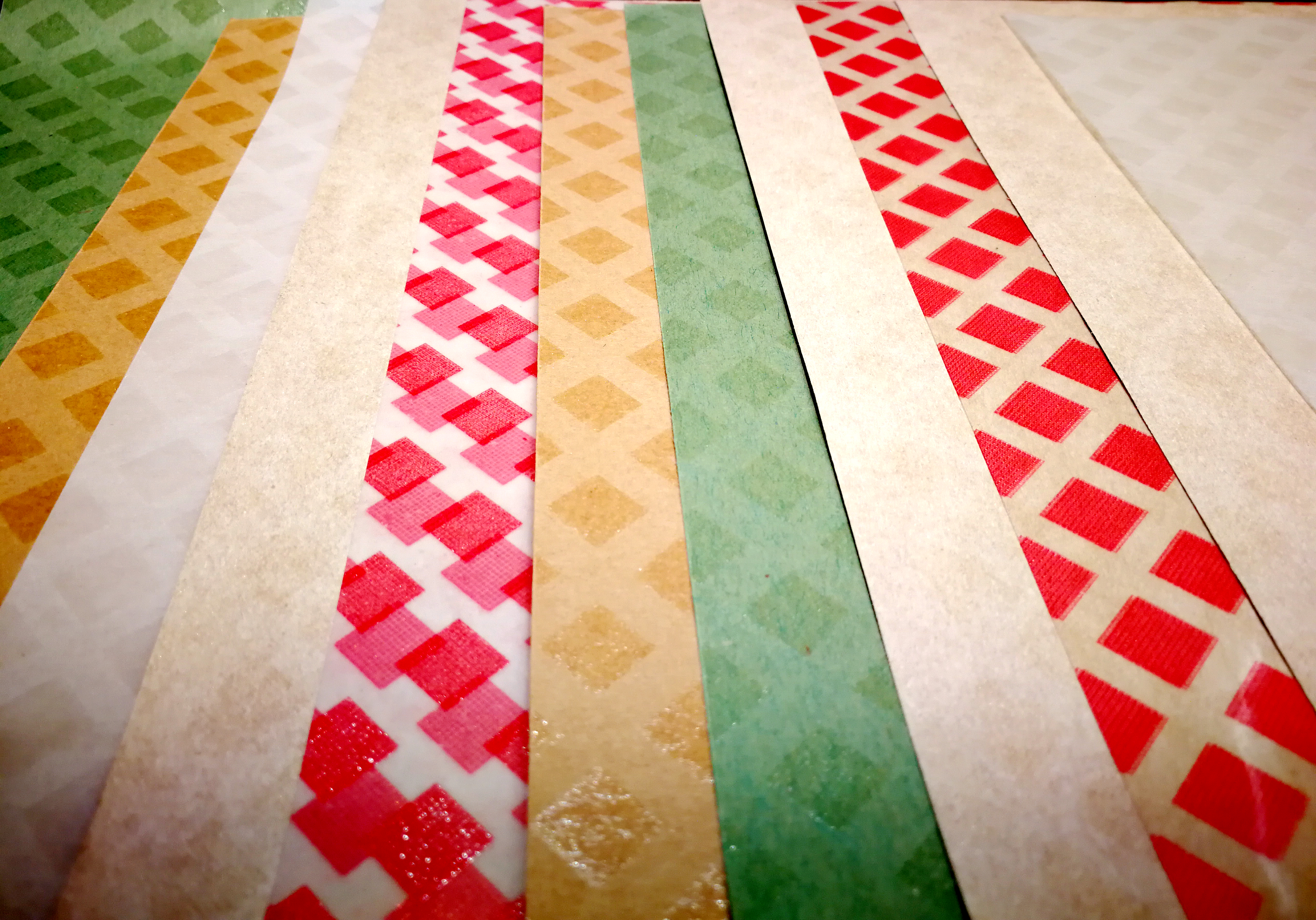

  点胶纸

Virtue
Good bonding performance, mechanical and electrical performance. Reduction of partial discharge and corona damage.
Main Application
Yuxiang diamond pattern resin-coated products are widely used as oil-immersed power transformer coil turns of the wire insulation and insulation, epoxy resin cast transformers, can also be used for Nomex® paper covered wire.

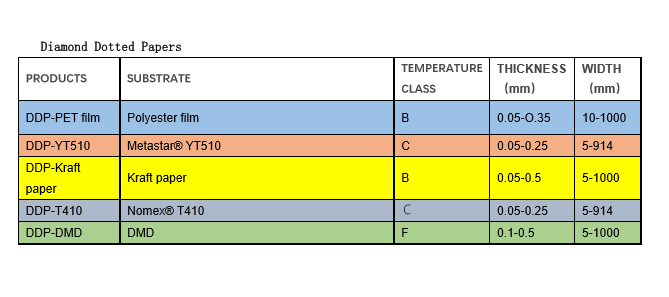

DDP
