Profile

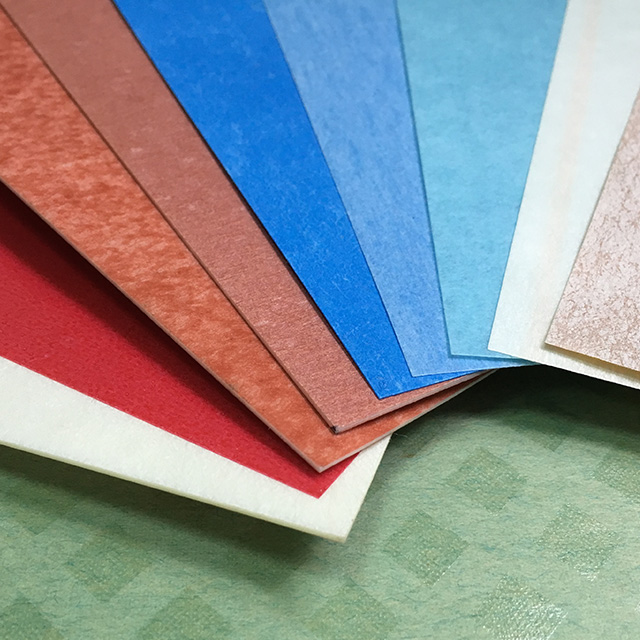

Yuxiang composite products are composed of multi-layer flexible insulation materials, such as Nomex®, Aramid Paper, non-woven, PET film, polyimide film, etc., with a heat-resistant adhesive bonding.
Maximum width of finished products: 1600mm
Thickness range of composite products:0.05~4.0mm
Products thermal class: B(105℃) ~C(220℃) class
Minimum slitting width: 2.3mm；
Maximum slitting width: 1600mm；
Slitting thickness: 0.012~4mm.



Virtue
Reinforced insulating paper mechanical and electrical performance, while reducing the cost of materials.

Main Application
Yuxiang composite products are widely used in the main insulation of high/low voltage motors, dry-type/ fluid-filled transformers, generators, electric reactors, bus-bars etc.
