DMD-P/YMY-P/SHS-P
General description

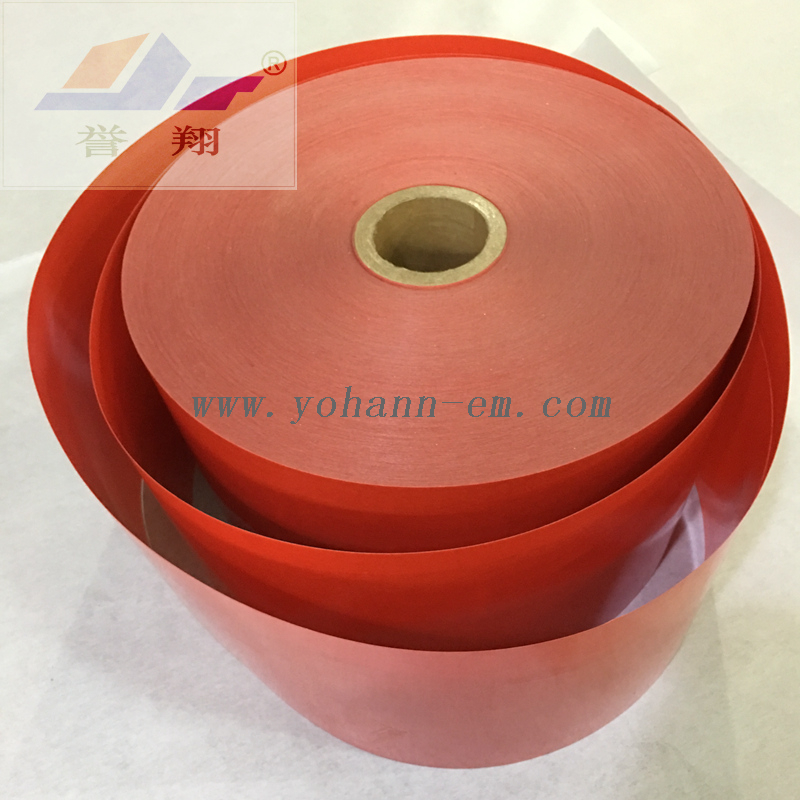

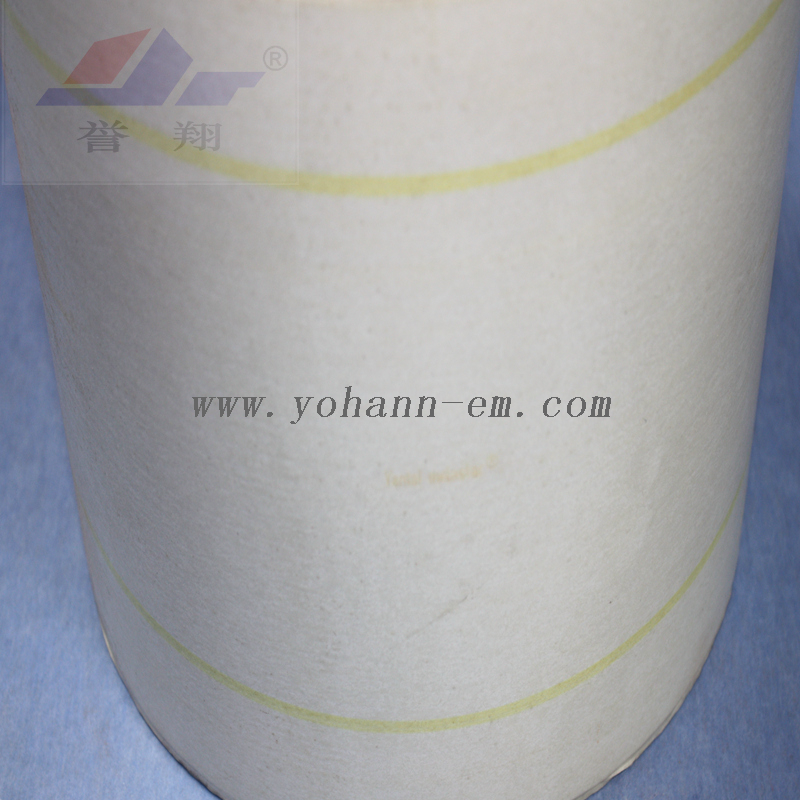

Yuxiang® DMD-P/YMY-P/SHS-P is a prepreg material which coating the b-stage epoxy resin on both sides of the DMD/YMY/SHS flexible composite.
Typical Application
Yuxiang® DMD-P/YMY-P/SHS-P is mainly used for layer insulation dry-type transformers, transformer copper (aluminum) foil glued together, thus reducing the noise of transformer.
Typical Physical Properties
Class F(155ºC)/H(180℃）
Good mechanical properties
Good bonding performance
Reduce the noise of the transformer
PRODUCTS | SUBSTRATE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
DMD-P | DMD | F | 0.13-4.0 | 3-1580 |
SHS-P | SHS | H | 0.13-0.5 | 3-1030 |
DMD100 C-stage | DMD | F | 0.13-4.0 | 3-1580 |
NMN-P | NMN | H | 0.13-0.9 | 3-1580 |
YMY-P | YMY | H | 0.13-0.9 | 3-1580 |
TFT-P | TFT | H | 0.15-0.65 | 3-900 |
A18 B-stage | X-Fiber® X630 | H | 0.08-0.8 | 3-1000 |
Y18 B-stage | Metastar® YT510 | H | 0.08-0.8 | 3-1000 |
G18 B-stage | Glass Cloth | H | 0.18 | 10-1240 |
N18 B-stage | Nomex® T410 | H | 0.08-0.8 | 3-914 |
P18 B-stage | Polyester film | B | 0.08-0.4 | 3-1000 |
D18 B-stage | Dacron | B | 0.08-0.25 | 3-1000 |
