YX-DDP
Yuxiang
General description

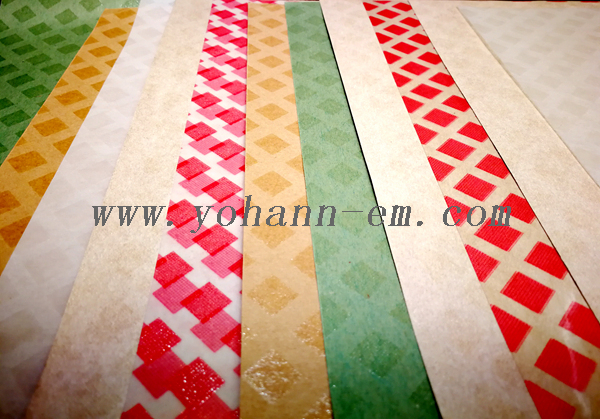

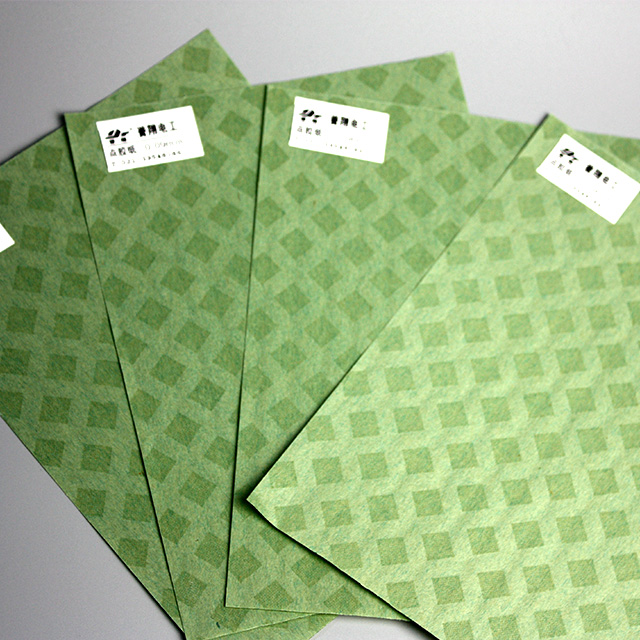

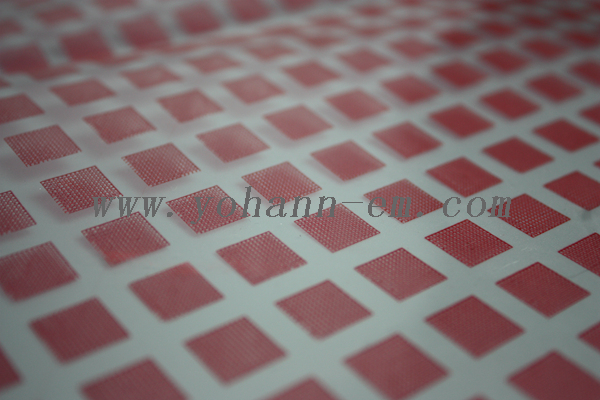

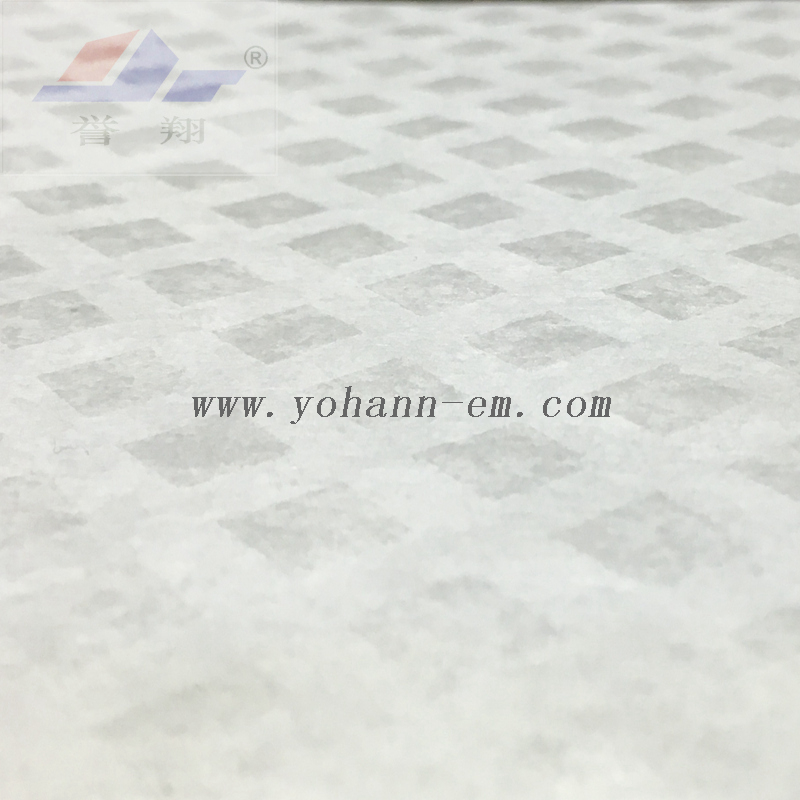

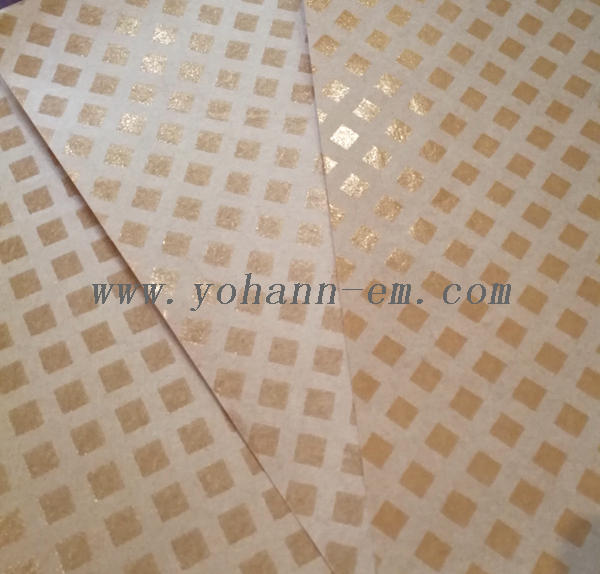

Yuxiang® DDP is modified epoxy resin showed insulating coating on electrical baked DuPont™ Nomex® T410/Kraft paper/ Pet film/DMD/NMN/Aramid paper into a state of semi-curing insulation material.
Typical Application
With good bonding performance and reduction of partial discharge and Corona damage, Yuxiang® DDP can be used as oil-immersed power transformer coil turns of the wire insulation and insulation, also be used for Nomex® paper covered wire.
PRODUCTS | SUBSTRATE | TEMPERATURE CLASS | THICKNESS（mm） | WIDTH（mm） |
DDP-PET film | Polyester film | B | 0.05-O.35 | 10-1000 |
DDP-YT510 | Metastar® YT510 | C | 0.05-0.25 | 5-914 |
DDP-Kraft paper | Kraft paper | B | 0.05-0.5 | 5-1000 |
DDP-T410 | Nomex® T410 | Ｃ | 0.05-0.25 | 5-914 |
DDP-DMD | DMD | F | 0.1-0.5 | 5-1000 |
